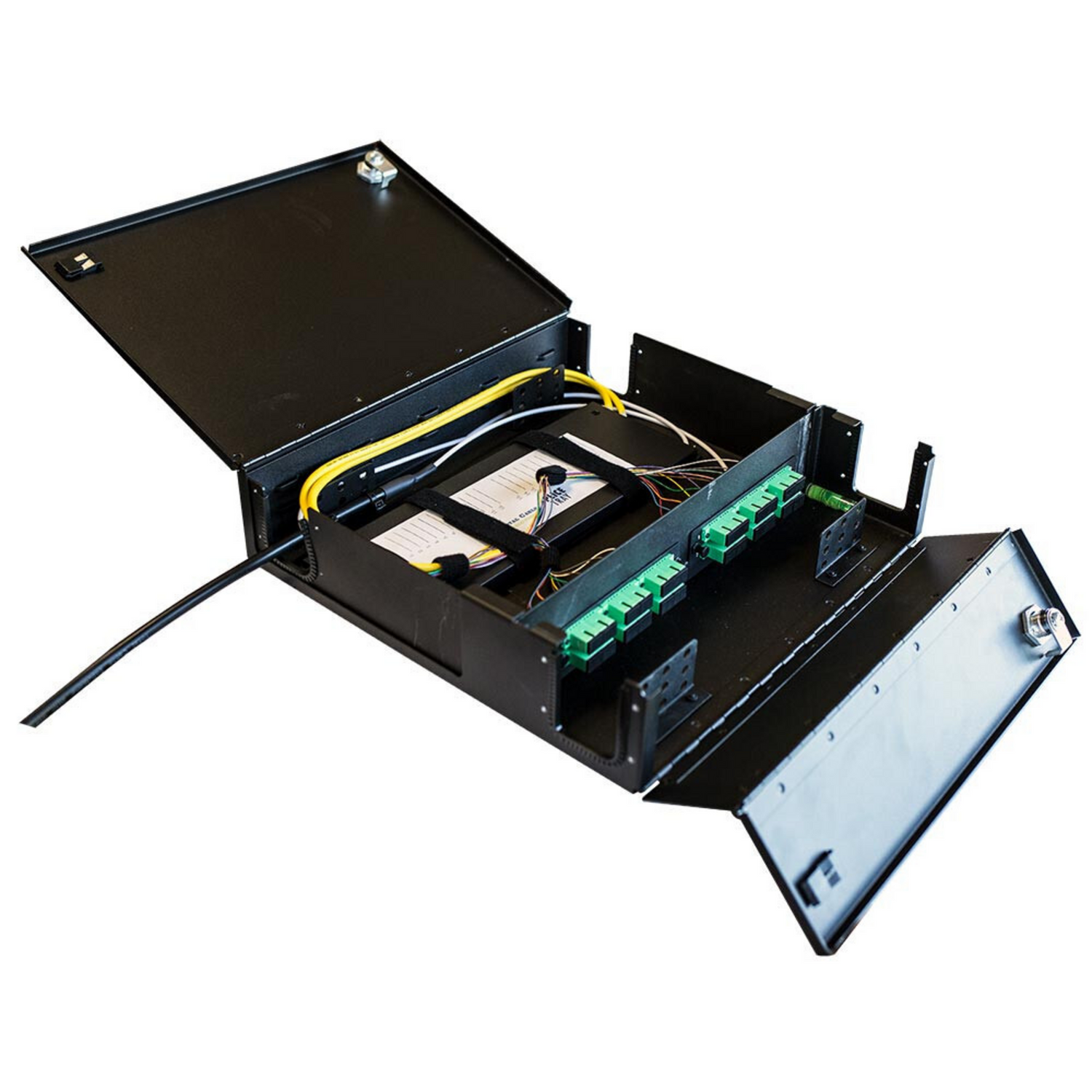

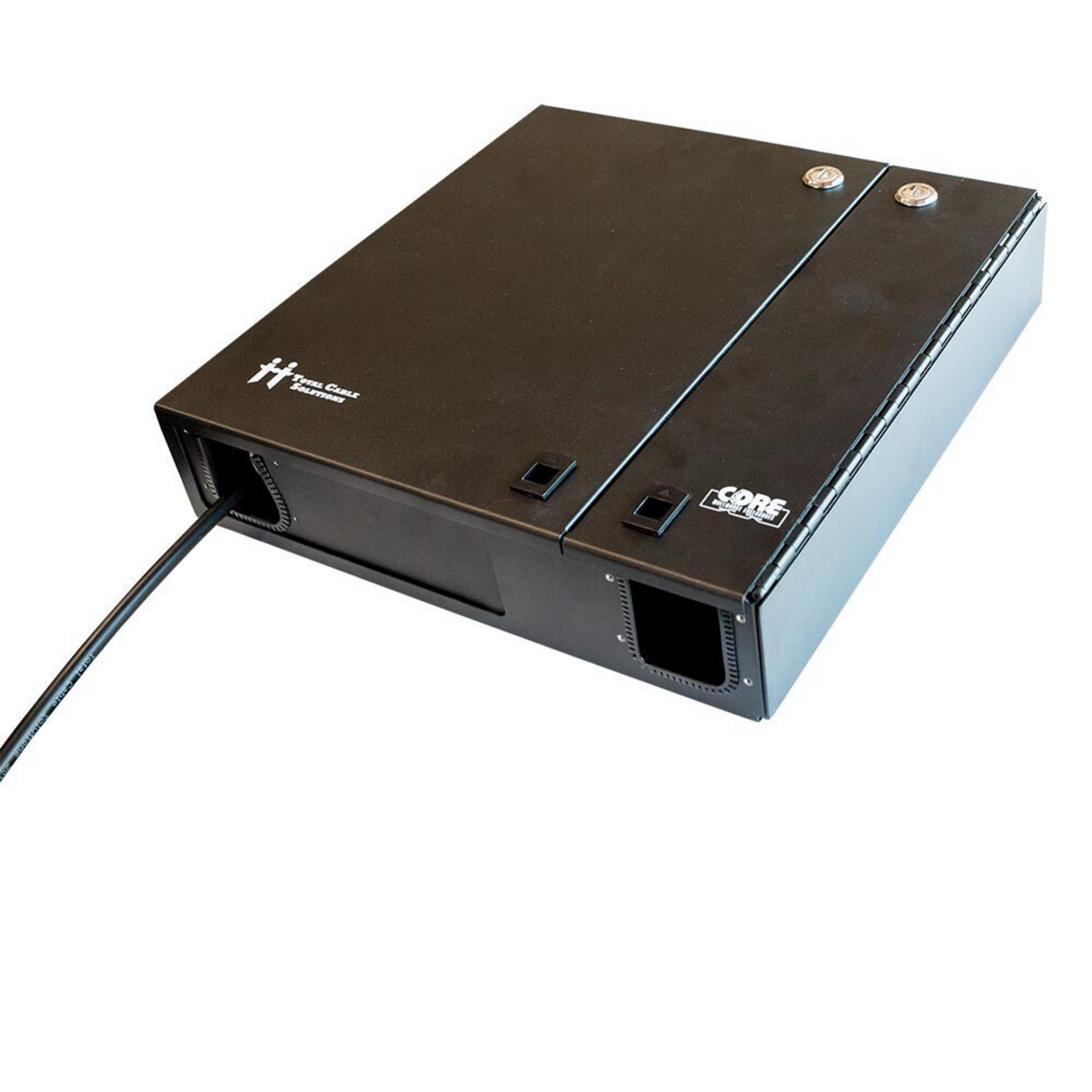

2 LGX CORE (Twin) Wall Mount Fiber Patch Panel Enclosure (Unloaded)

Designed for high density and easy access, the LYNN LGX Core Wall Mount Fiber Enclosure includes a patented removable inner core for simple adds and changes. Constructed from 16 gauge steel for performance and durability. Includes locking dual-hinge to protect contents.

Holds 2 LGX adapter panels up to 48 fibers (48 LC, 24 SC or ST).

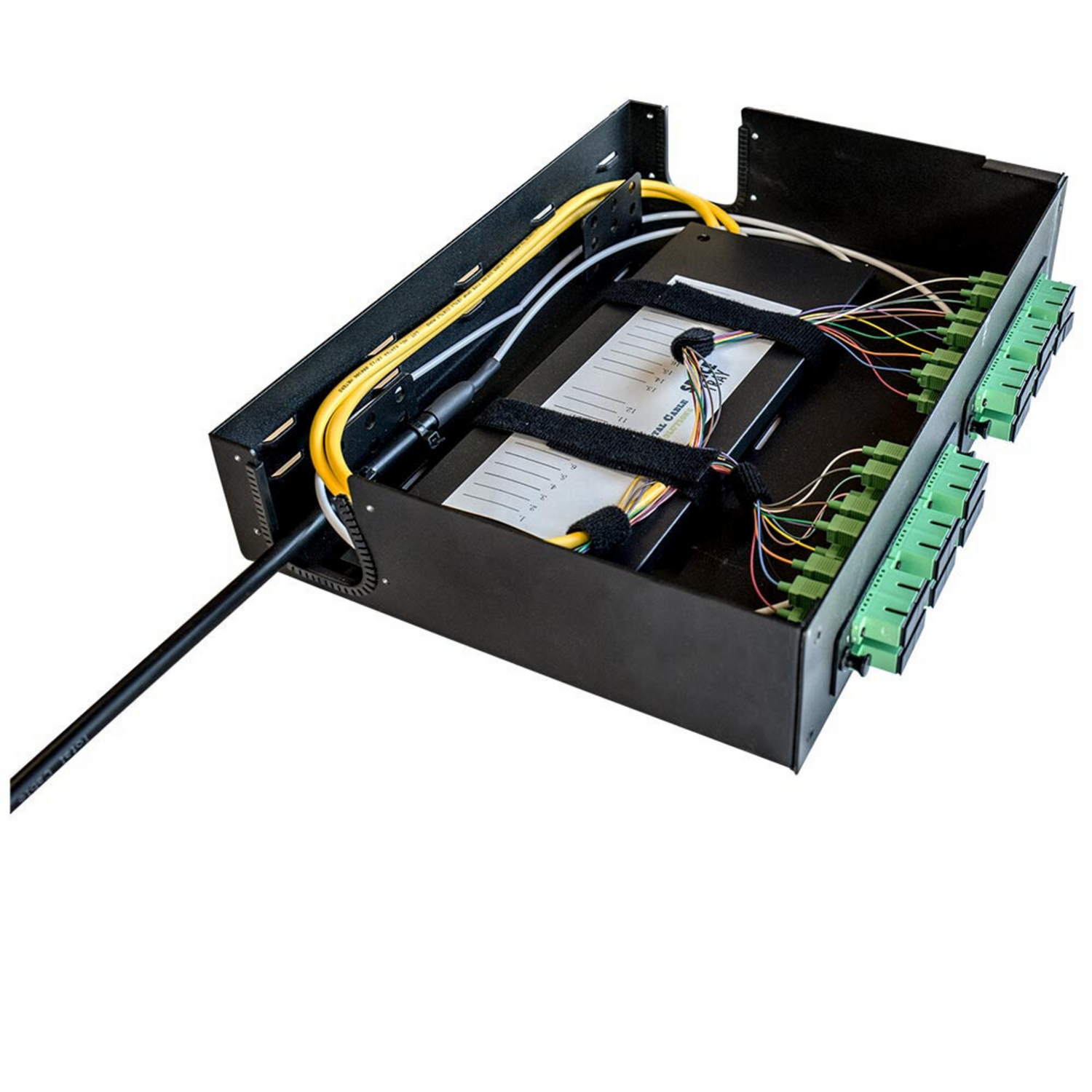

• Removable Inner Core - Perfect for table-level splicing, plugging, cleaning, and organizing
• Dual-hinge - Provides easy access anywhere
• 4 Non-captive Entries (top and bottom) - Protects trunk/cables
• Bubble Level - Secured on inside of enclosure for easy installation
• Protected by US Patent No.: US 2018/0259733 A1. Additional patents pending.

Ships in durable cardboard box with anti-static EPE pearl cotton foam packaging.

Enclosure Type: Wall Mountable
Dimensions (HxWxD): 3 in. x 13 in. x 13 in.
Material: 16 gauge steel with black electrostatic polyester powder coat paint
Capacity: 2 LGX adapter panel (purchased separately)
Fiber Count: Max. 48 (48 LC, 24 SC or ST)

Included in box
2 enclosure keys
4 rubber cable entry grommets
8 zip ties
6 Velcro ties
1 Velcro wire management strap
