Lynn Networks  |  SKU: CAT6SH-01-BKB

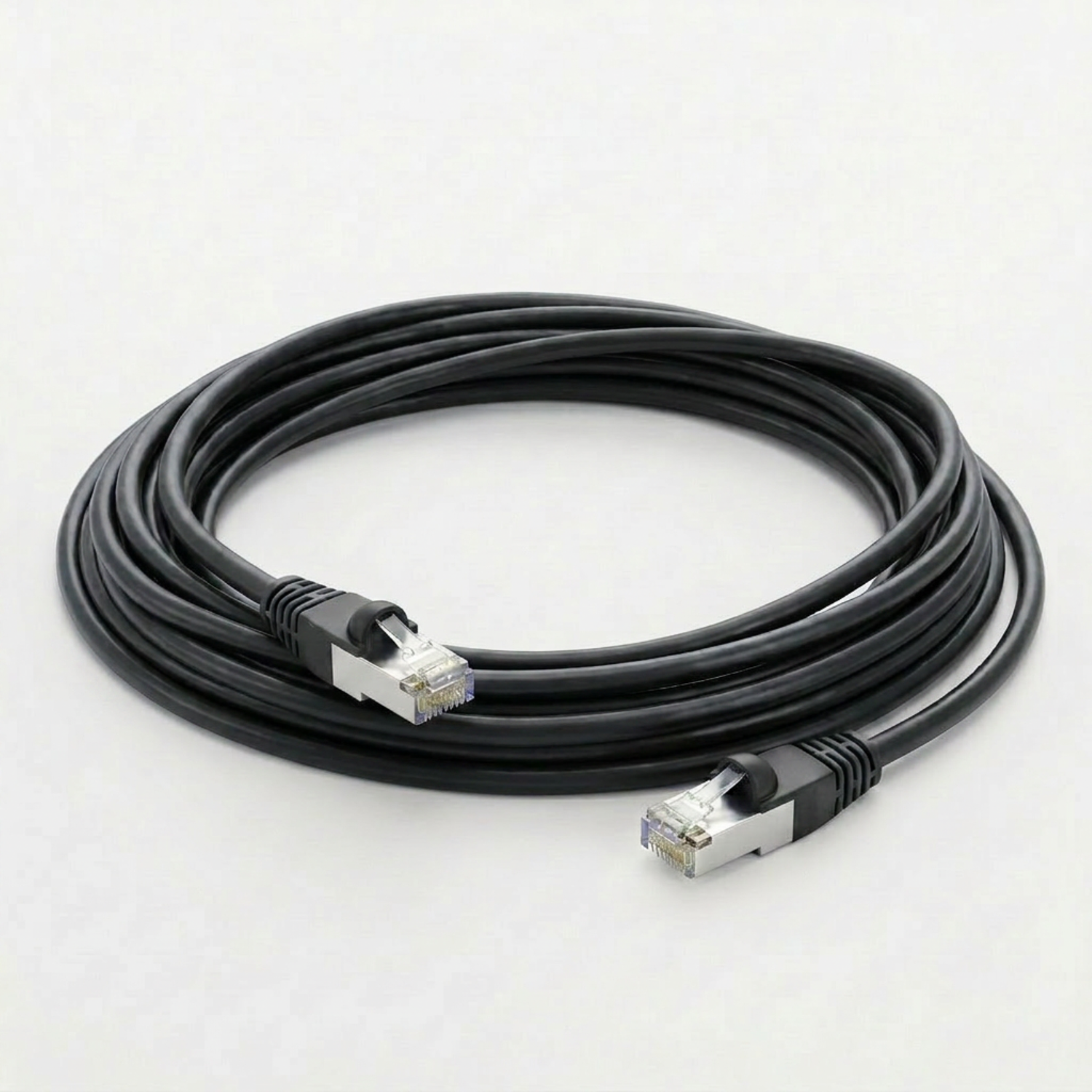

CAT6 Shielded Stranded Patch Cord - Choice Series

Shipping calculated at checkout.
Jacket Color: Black
Length

Description

LYNN's Choice Series offers dependable quality at a highly competitive price. With aggressive stocking levels in our U.S. warehouses and same day shipping, Choice Series cables ensure reliable performance is available right when needed.

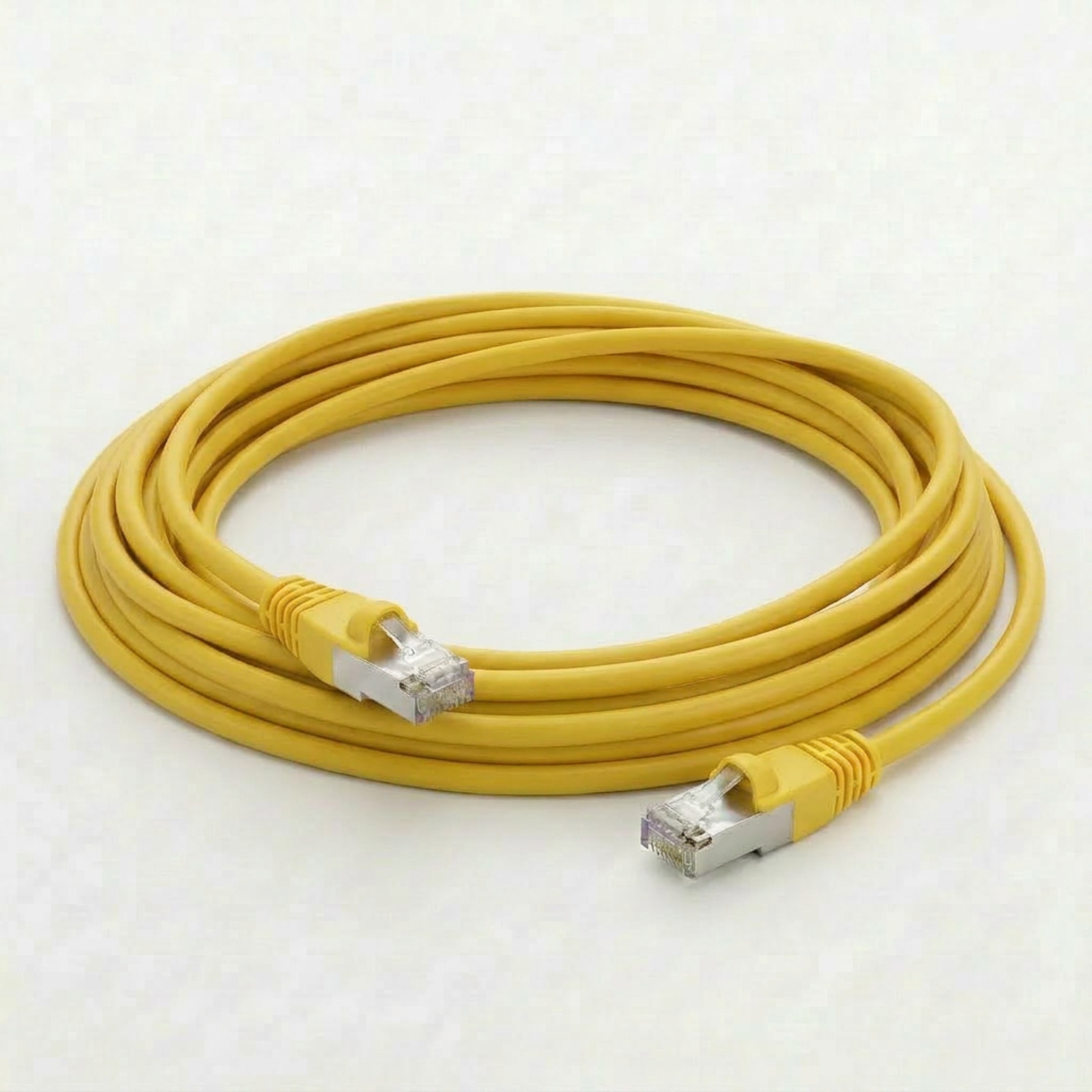

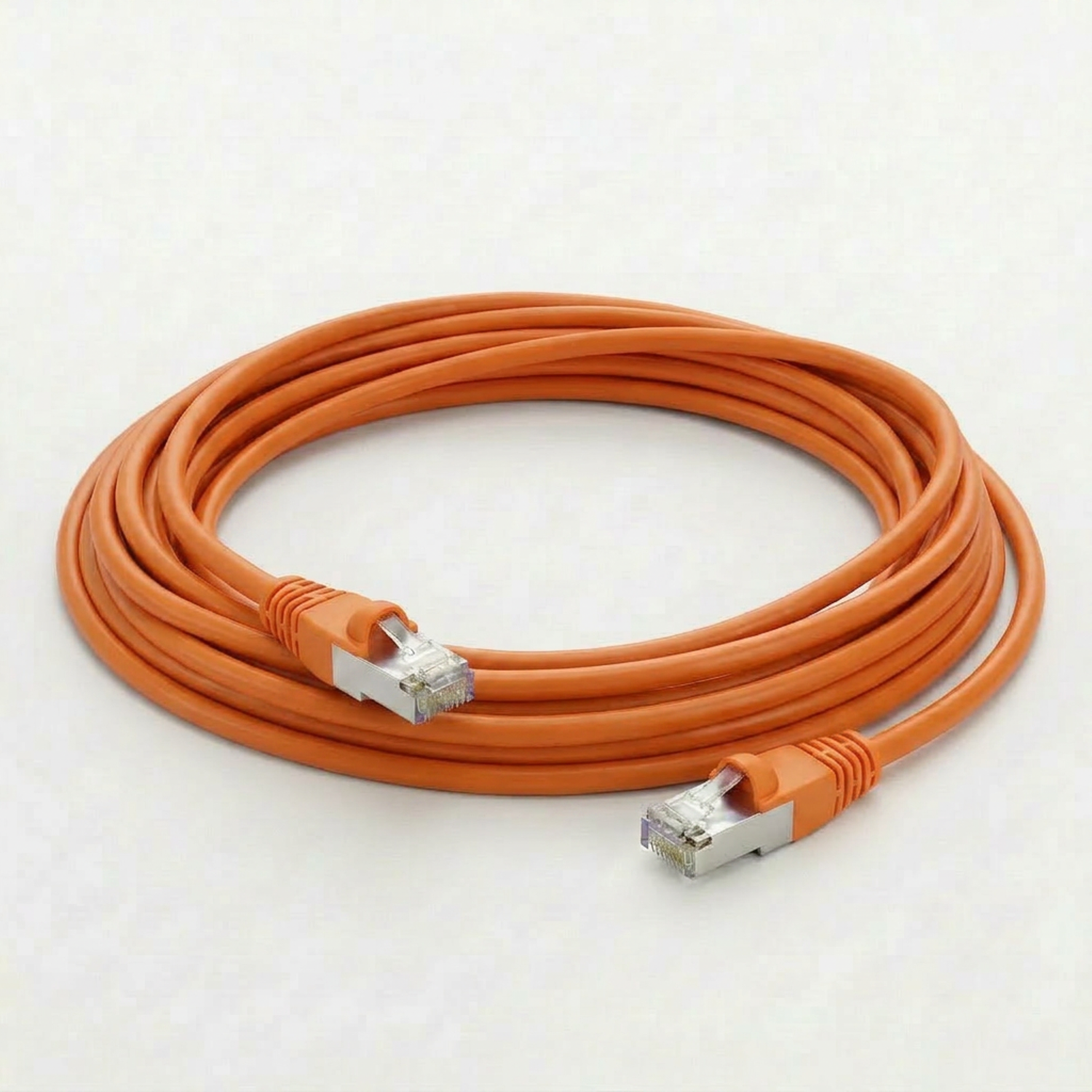

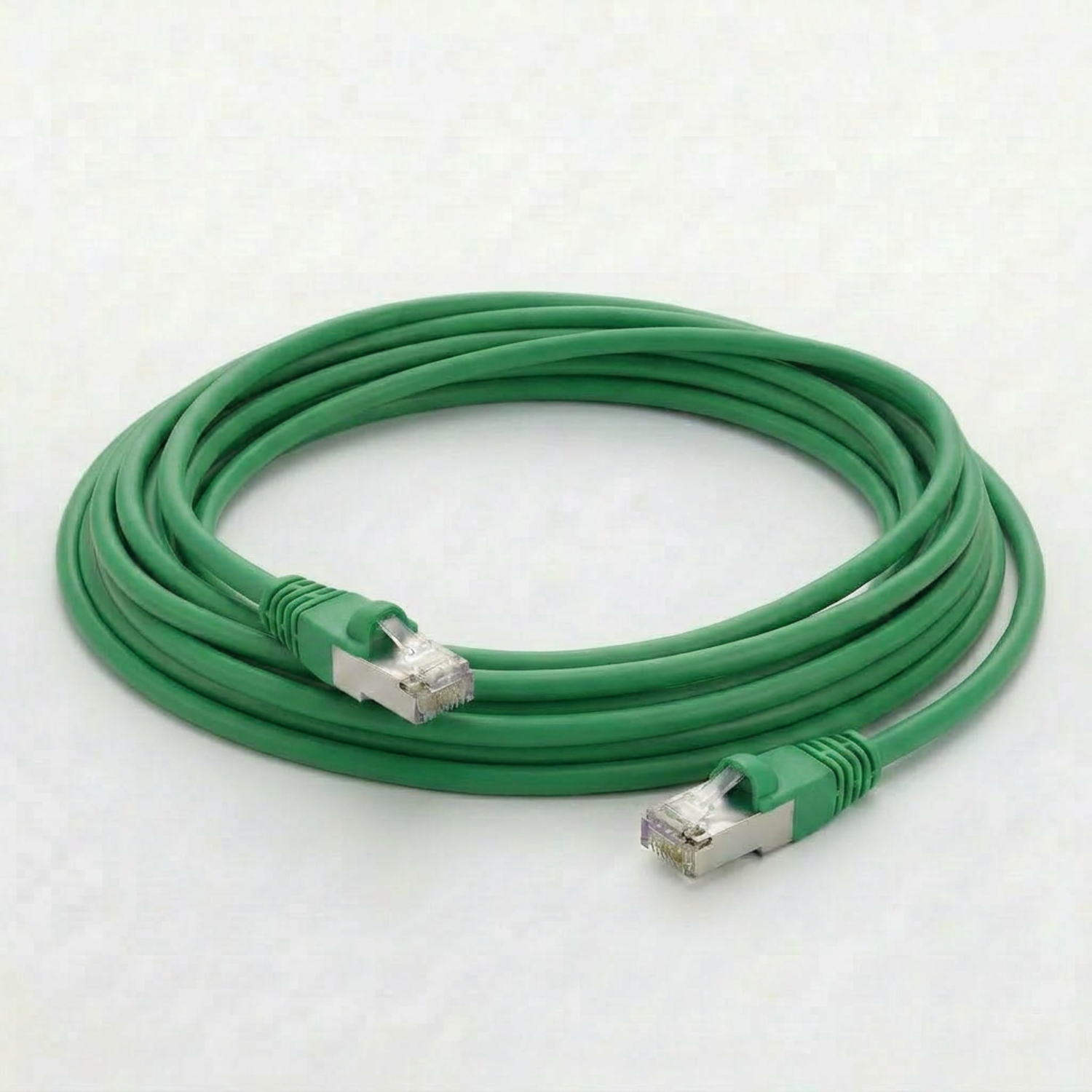

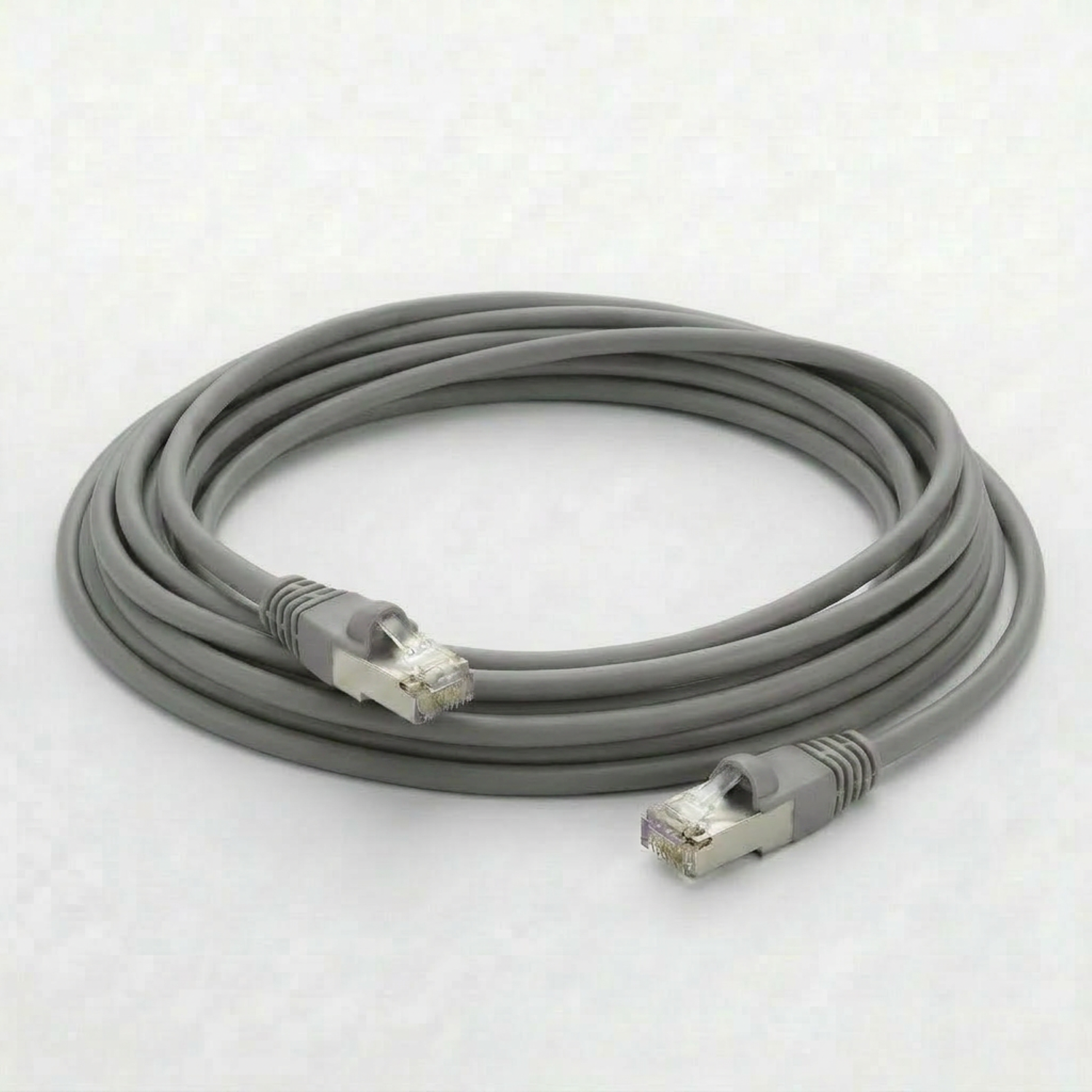

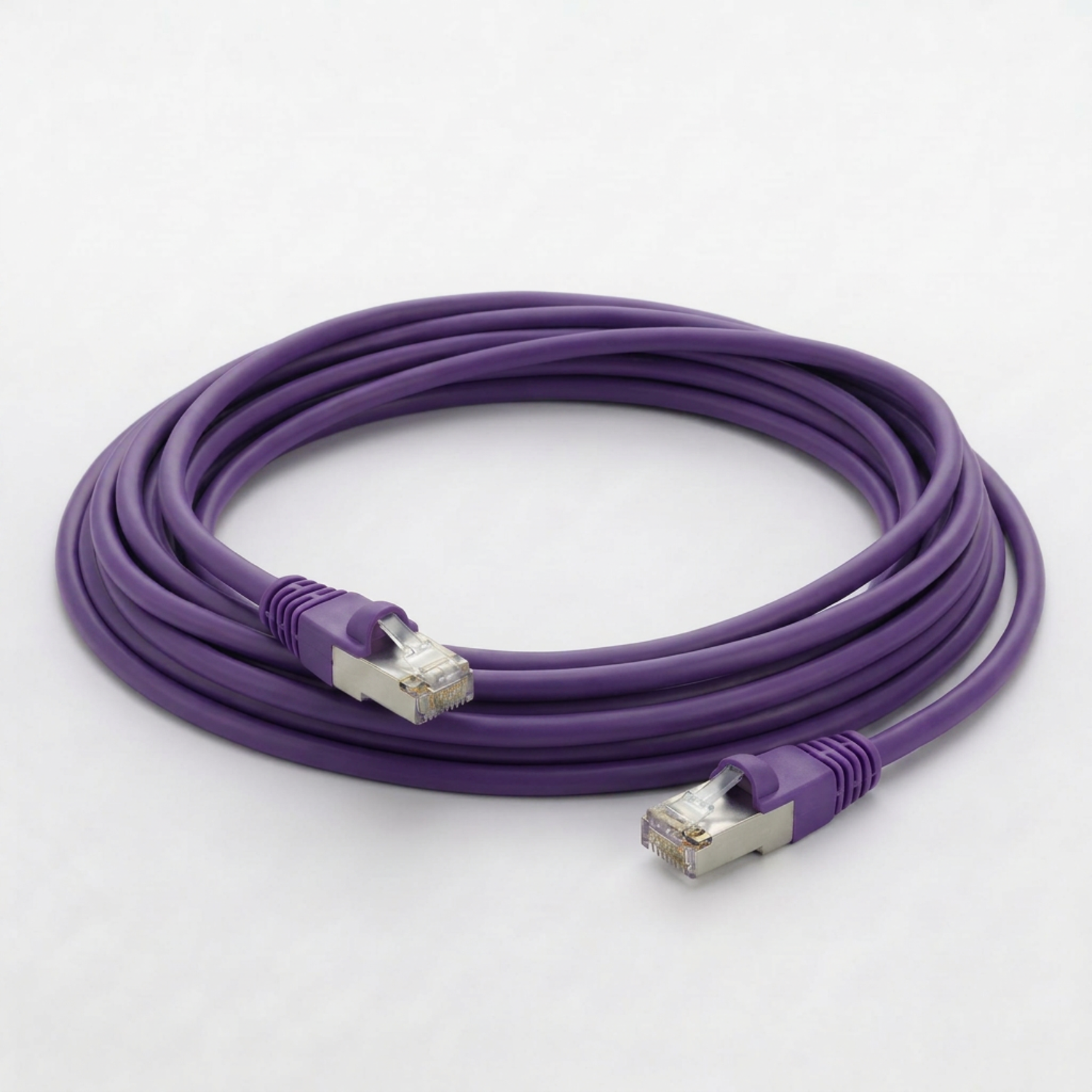

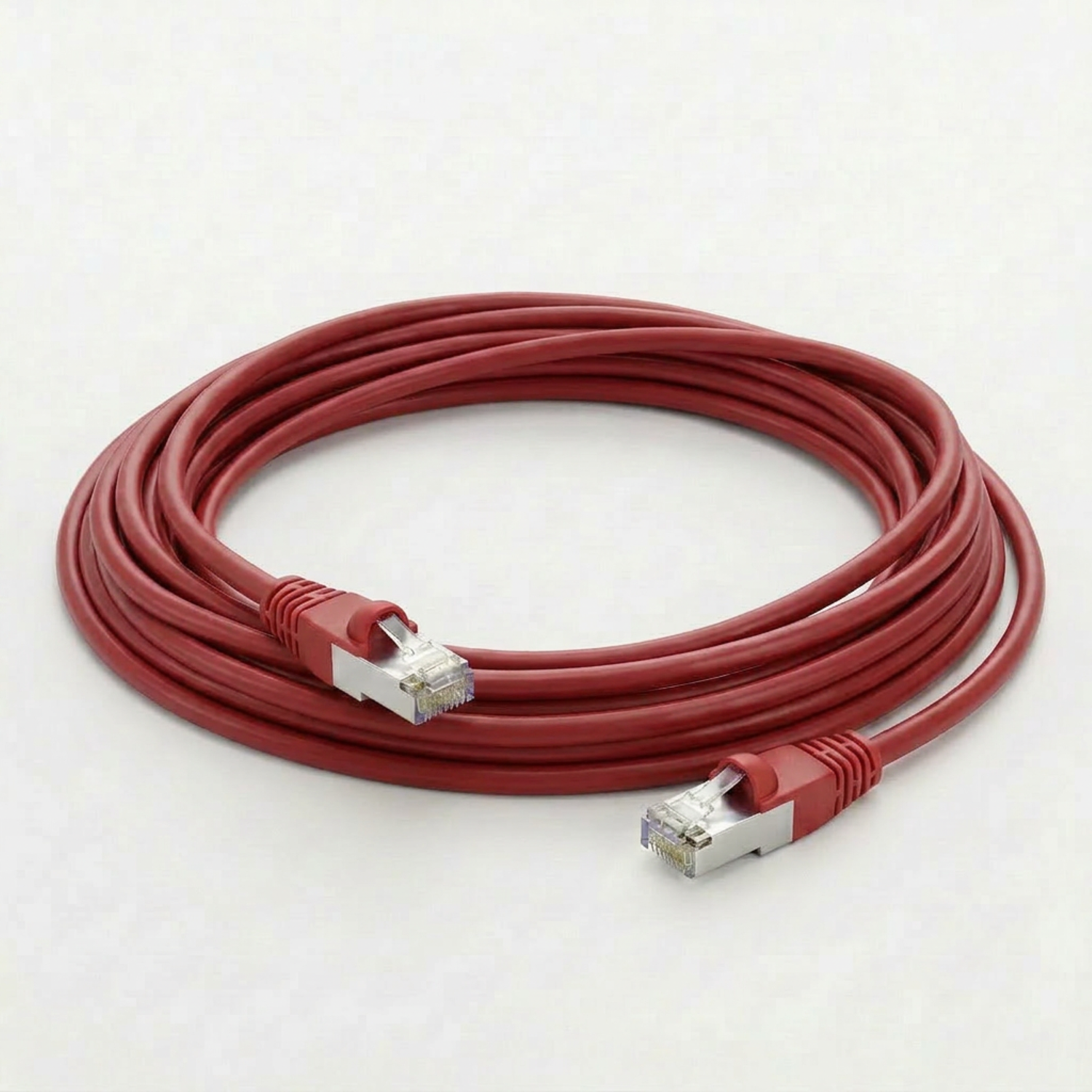

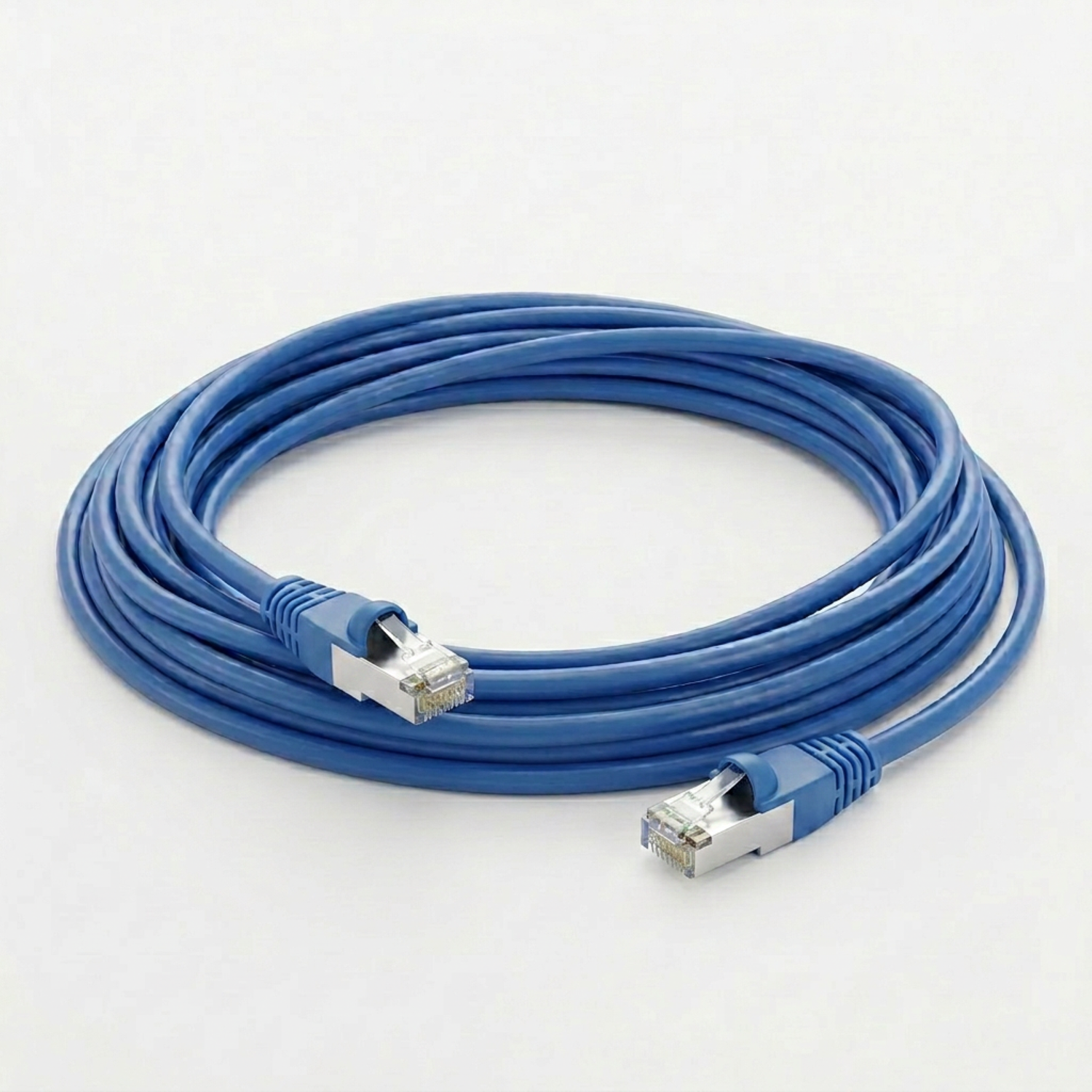

LYNN Choice CAT6 shielded cables are built with stranded twisted pair cable and are available in a variety of stock colors and lengths. Choice shielded cables feature a booted connector construction.

LYNN specializes in custom copper and fiber optic assembly manufacturing with facilities throughout North America. Most cables are built within 48 hours or faster. Use our custom cable builder to design and submit a custom cable request.

Specifications
  • Purchase Description

    LYNN CHOICE Series Cat 6, Bare Stranded Copper (24 AWG), Foil Wrapped (FTP), PVC Snagless Boot, Black, 1 ft (0.30 m)

  • Product Line
    Choice Series
  • Ethernet Category Standard
    Cat 6
  • Flammability Rating
    CM
  • Shielding Type
    Shielded (STP)
  • Jacket Color
    • Black
  • Cable Length
    • 1 ft (0.30 m)
    • 2 ft (0.61 m)
    • 3 ft (0.91 m)
    • 5 ft (1.52 m)
    • 7 ft (2.13 m)
    • 10 ft (3.05 m)
    • 15 ft (4.57 m)
    • 25 ft (7.6 m)
    • 50 ft (15.2 m)
    • 100 ft (30.5 m)
  • Jacket Material
    PVC
  • Jacket Diameter
    5.53 mm
  • Connector Type
    • Shielded RJ45 Male, Gold-Plated Conductors
  • Insulation Material
    High Density Polyethylene
  • Conductor Type
    Bare Stranded Copper
  • Conductor Size
    24 AWG
  • Conductor Count
    8
  • Boot Type
    PVC Snagless Boot
  • Boot Color
    Black
  • PoE Maximum Distance
    100 m (328 ft)
  • PoE Power Rating
    • POE++: 1000mA, 96W
    • POE+: 600mA, 25.5W
    • POE: 350mA, 12.95W
  • Supported Data Rate
    Up to 10 Gbps
  • Frequency Bandwidth
    500 MHz
  • Operating Temperature Range
    0° C to 50° C (32° F to 122° F)
  • Country of Origin
    Vietnam
  • Compliance
    • BABAA
    • RoHS
    • UL Listed
    • Proposed ISO/IEC 11801 2nd edition, Class D & CAT5E
    • ISO/IEC 11801
    • ANSI/TIA/EIA-568-B-2
    • ANSI/TIA/EIA-568-B-1
    • ANSI/TIA/EIA-568-A-5
    • ANSI/TIA/EIA-568-A-4
    • ANSI/TIA/EIA-568-A-3
    • ANSI/TIA/EIA-568-A-2
    • ANSI/TIA/EIA-568-A-1
    • ANSI/TIA/EIA-568-A
    • TIA PN-4657
  • Manufacturing Facility Certifications
    • TUV
    • ISO-9001
