Lynn Networks  |  SKU: CPCS-6BK-001F

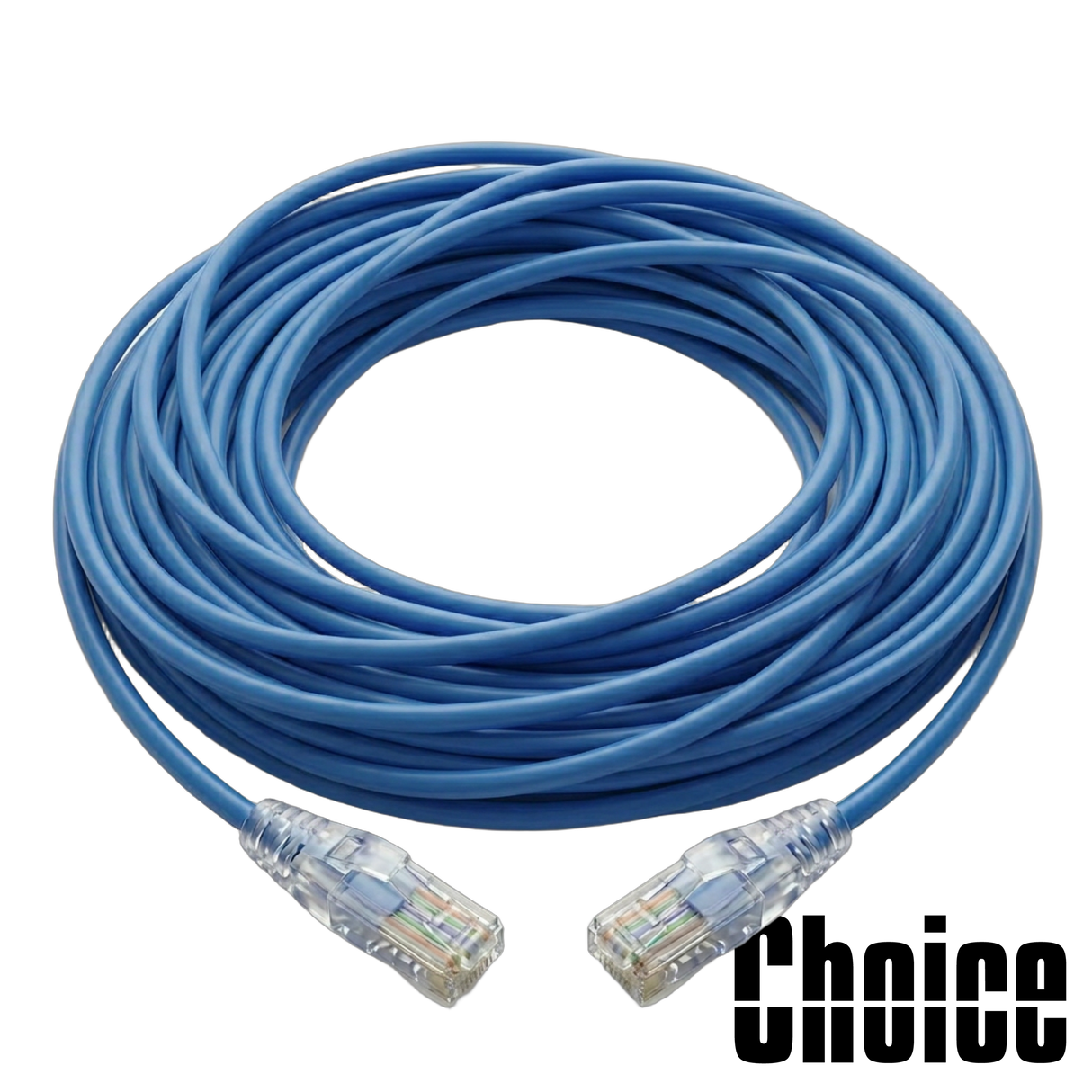

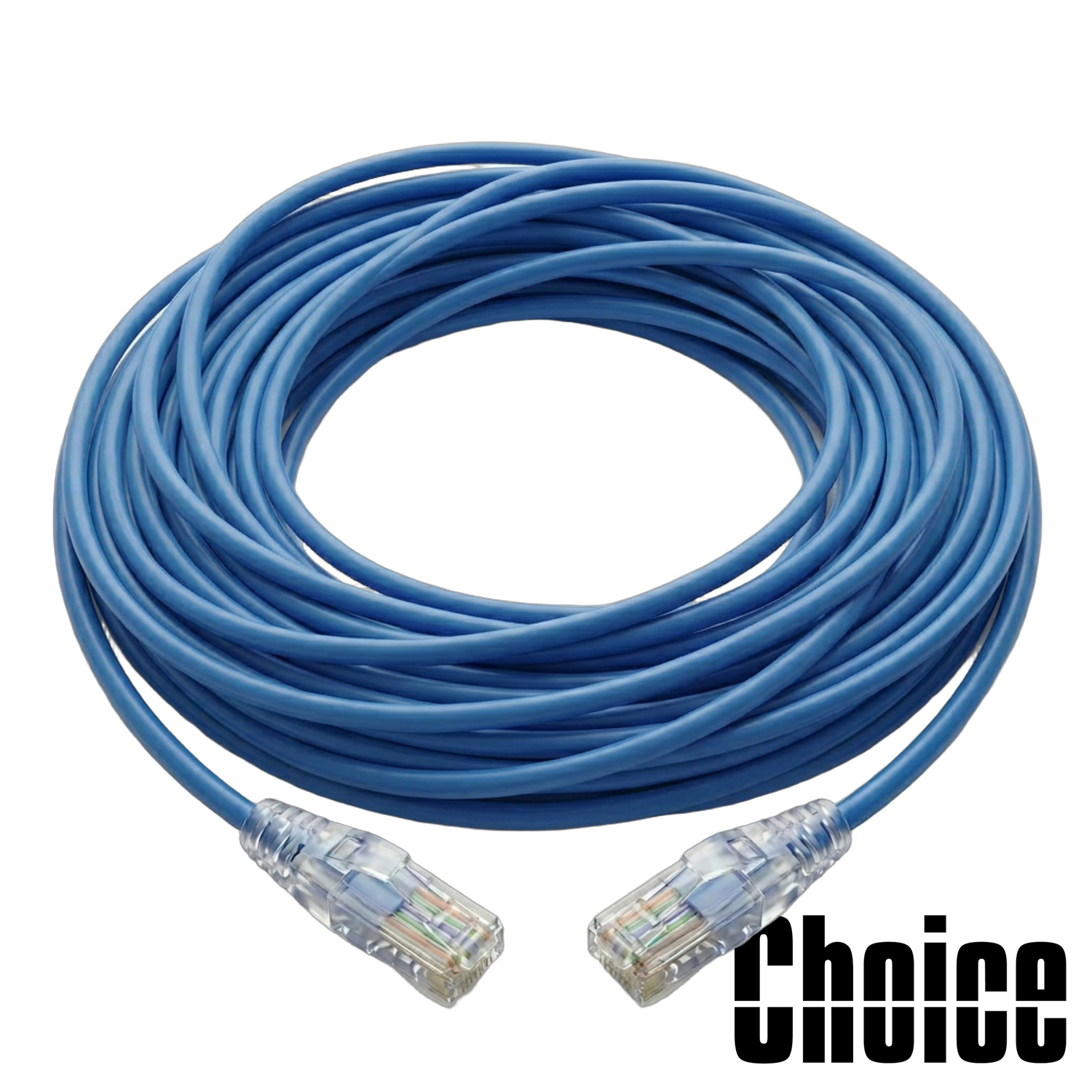

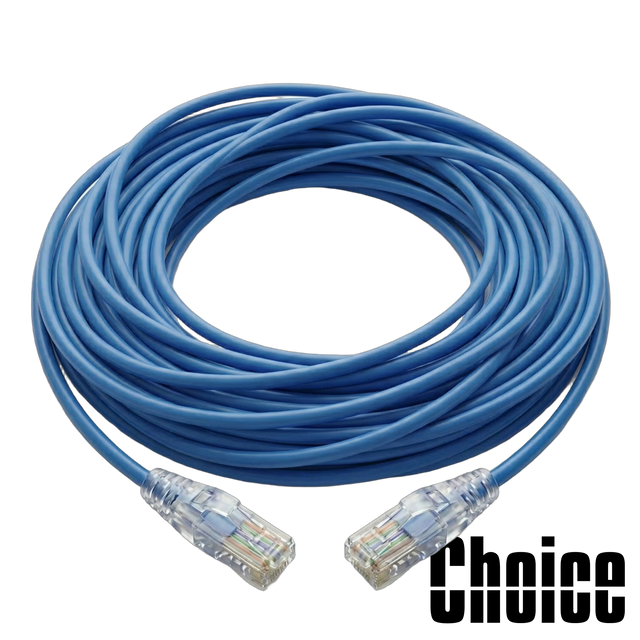

CAT6 Unshielded Slim 28AWG Patch Cord - Choice Series

Shipping calculated at checkout.
Jacket Color: Black
Length

Description

LYNN's Choice Series offers dependable quality at a highly competitive price. With aggressive stocking levels in our U.S. warehouses and same day shipping, Choice Series cables ensure reliable performance is available right when needed.

LYNN Choice CAT6 unshielded cables are built with 28AWG stranded twisted pair cable and are available in a variety of stock colors and lengths. Their slim-profile construction is 55% thinner than traditional twisted pair patch cords, making them ideal for tight bends and high-density installations.

LYNN specializes in custom copper and fiber optic assembly manufacturing with facilities throughout North America. Most cables are built within 48 hours or faster. Use our custom cable builder to design and submit a custom cable request.

Specifications
  • Purchase Description

    LYNN CHOICE Slim Series Cat 6, Stranded Tinned Copper (28 AWG), Unshielded (UTP), Low-profile Snagless Boot, Black, 1 ft (0.30 m)

  • Product Line
    Choice Series
  • Ethernet Category Standard
    Cat 6
  • Flammability Rating
    CM
  • Shielding Type
    Unshielded (UTP)
  • Jacket Color
    • Black
  • Cable Length
    1 ft (0.30 m)
  • Jacket Material
    PVC
  • Jacket Diameter
    3.8 mm
  • Connector Type
    • RJ45 Male, Gold-Plated Conductors
  • Insulation Material
    None
  • Conductor Type
    Tinned Stranded Copper
  • Conductor Size
    28 AWG
  • Conductor Count
    8
  • Boot Type
    Low-profile Snagless Boot
  • Boot Color
    Clear
  • PoE Maximum Distance
    30 m (98 ft)
  • PoE Power Rating
    • POE++: 1000mA, 96W
    • POE+: 600mA, 25.5W
    • POE: 350mA, 12.95W
  • Supported Data Rate
    Up to 10 Gbps
  • Frequency Bandwidth
    500 MHz
  • Operating Temperature Range
    0° C to 50° C (32° F to 122° F)
  • Country of Origin
    Vietnam
  • Compliance
    • BABAA
    • RoHS
    • UL Listed
    • Proposed ISO/IEC 11801 2nd edition, Class D & CAT5E
    • ISO/IEC 11801
    • ANSI/TIA/EIA-568-B-2
    • ANSI/TIA/EIA-568-B-1
    • ANSI/TIA/EIA-568-A-5
    • ANSI/TIA/EIA-568-A-4
    • ANSI/TIA/EIA-568-A-3
    • ANSI/TIA/EIA-568-A-2
    • ANSI/TIA/EIA-568-A-1
    • ANSI/TIA/EIA-568-A
    • TIA PN-4657
    • TIA/EIA-568-C.2 Category 6
  • Manufacturing Facility Certifications
    • TUV
    • ISO-9001
