Description

LYNN's Choice Series offers dependable quality at a highly competitive price. With aggressive stocking levels in our U.S. warehouses and same day shipping, Choice Series cables ensure reliable performance is available right when needed.

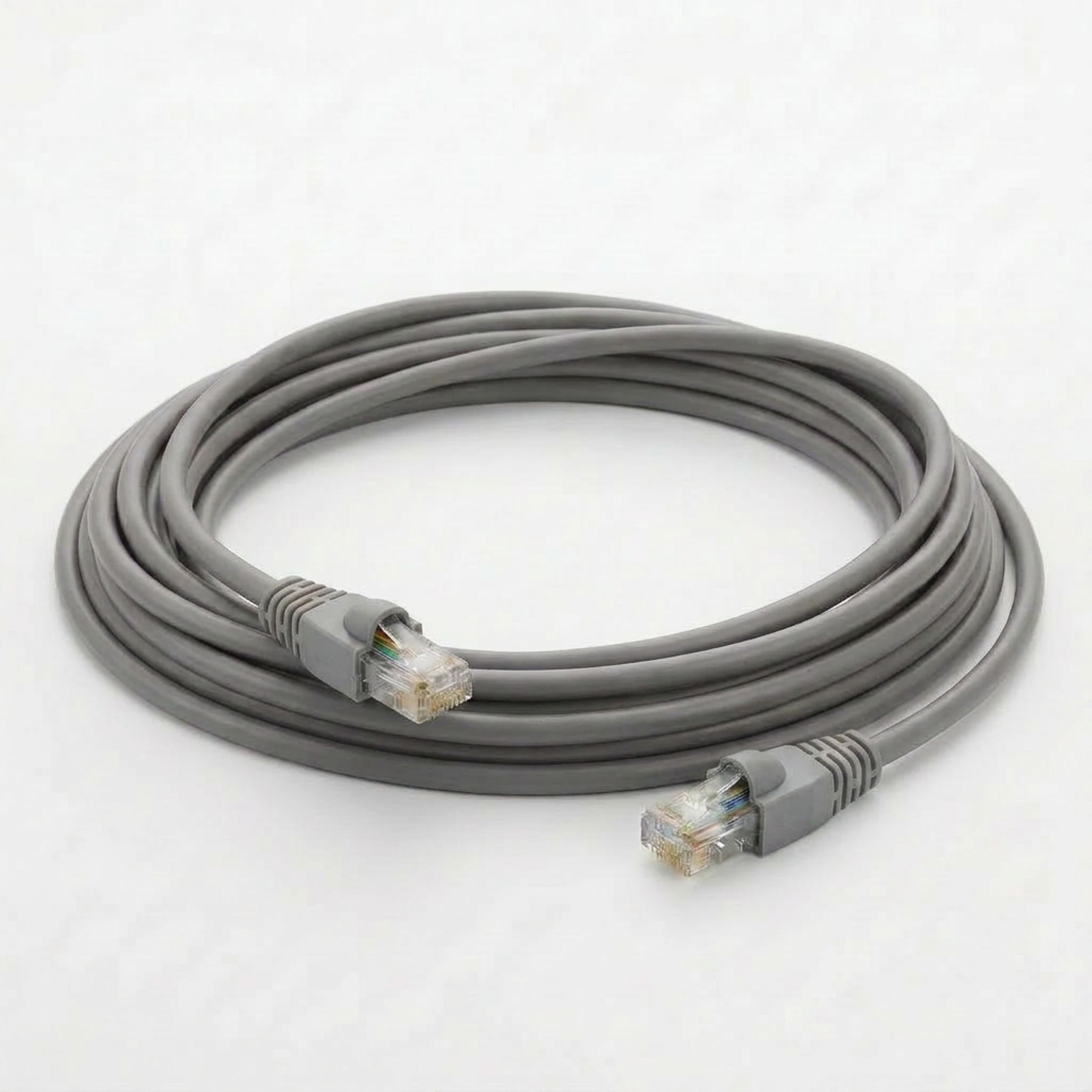

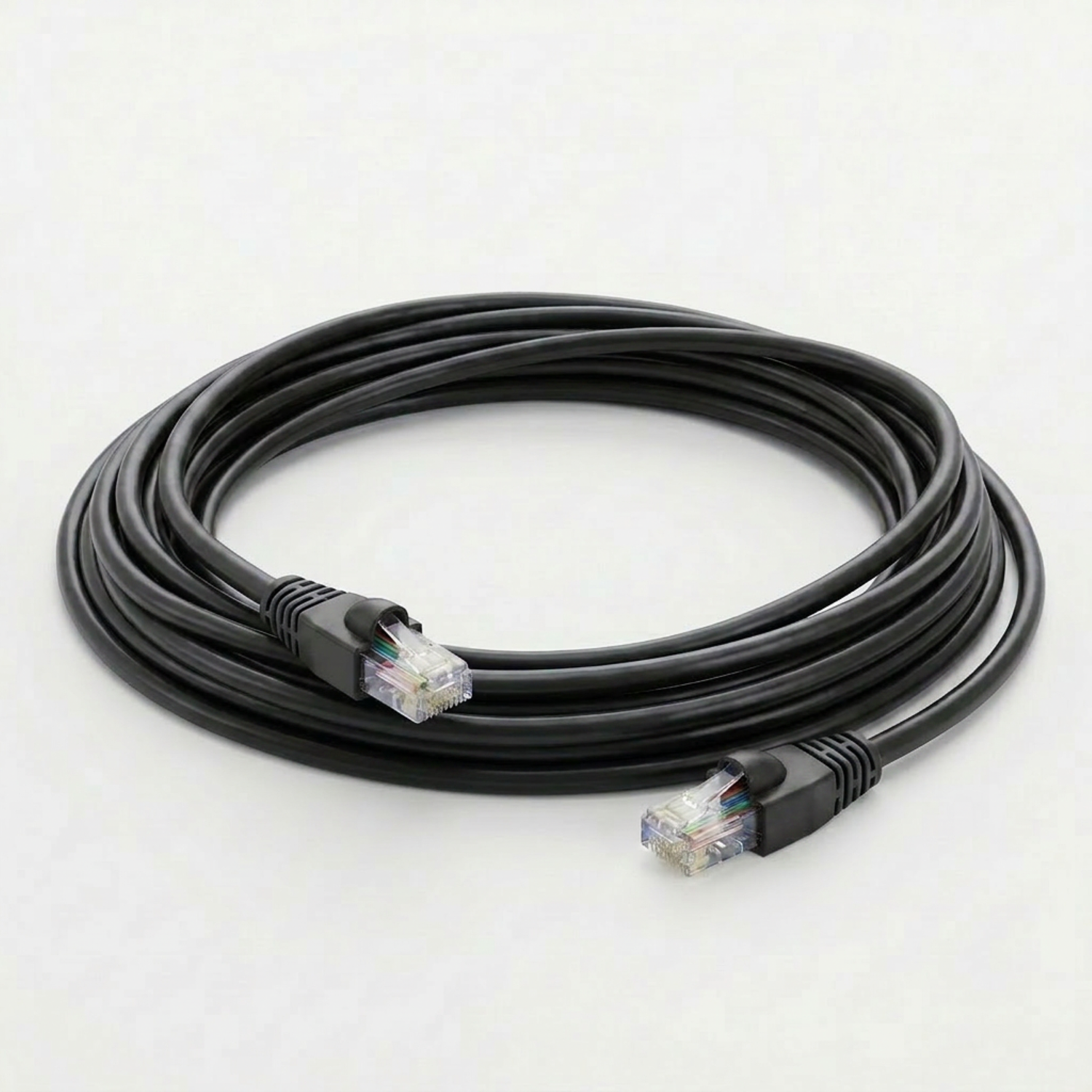

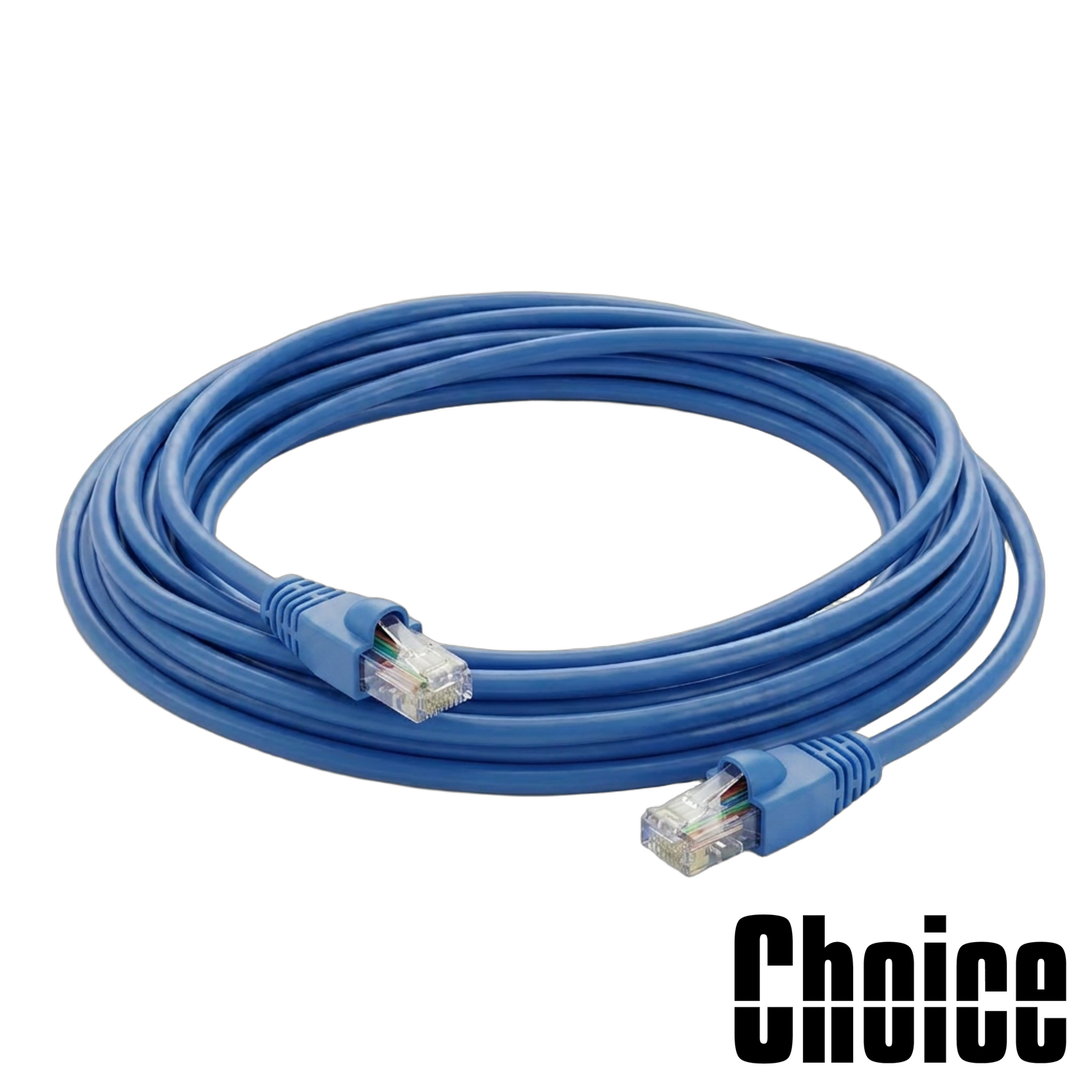

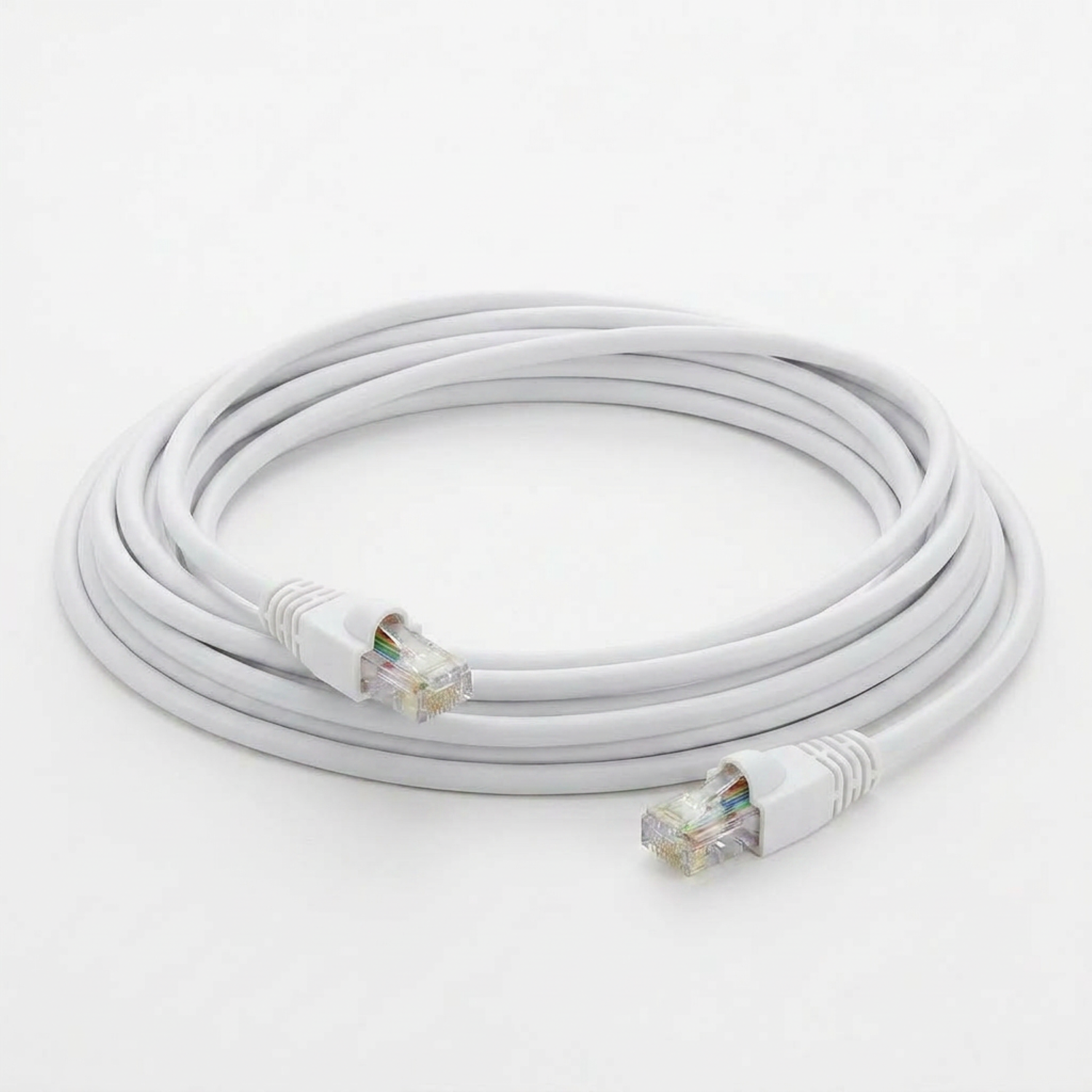

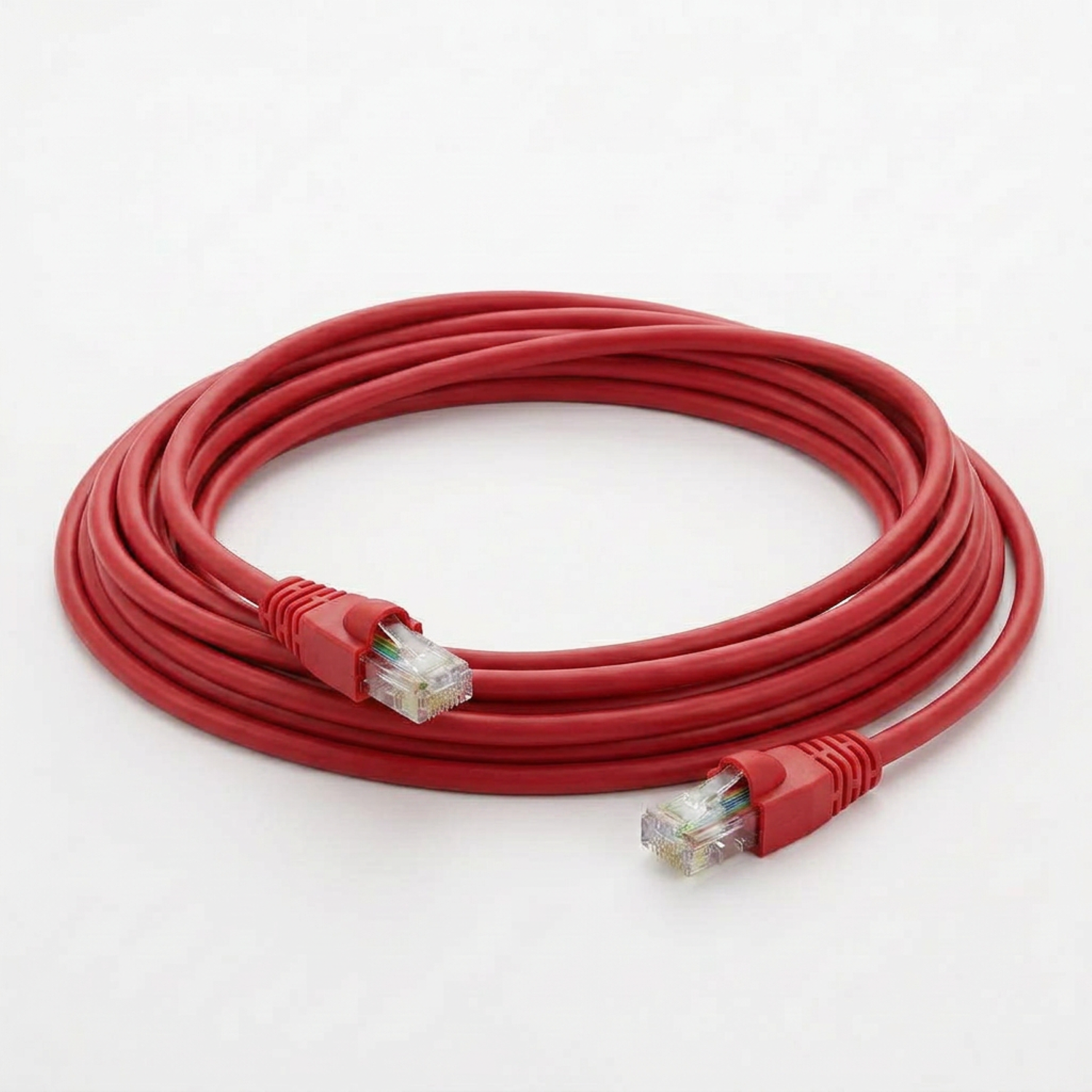

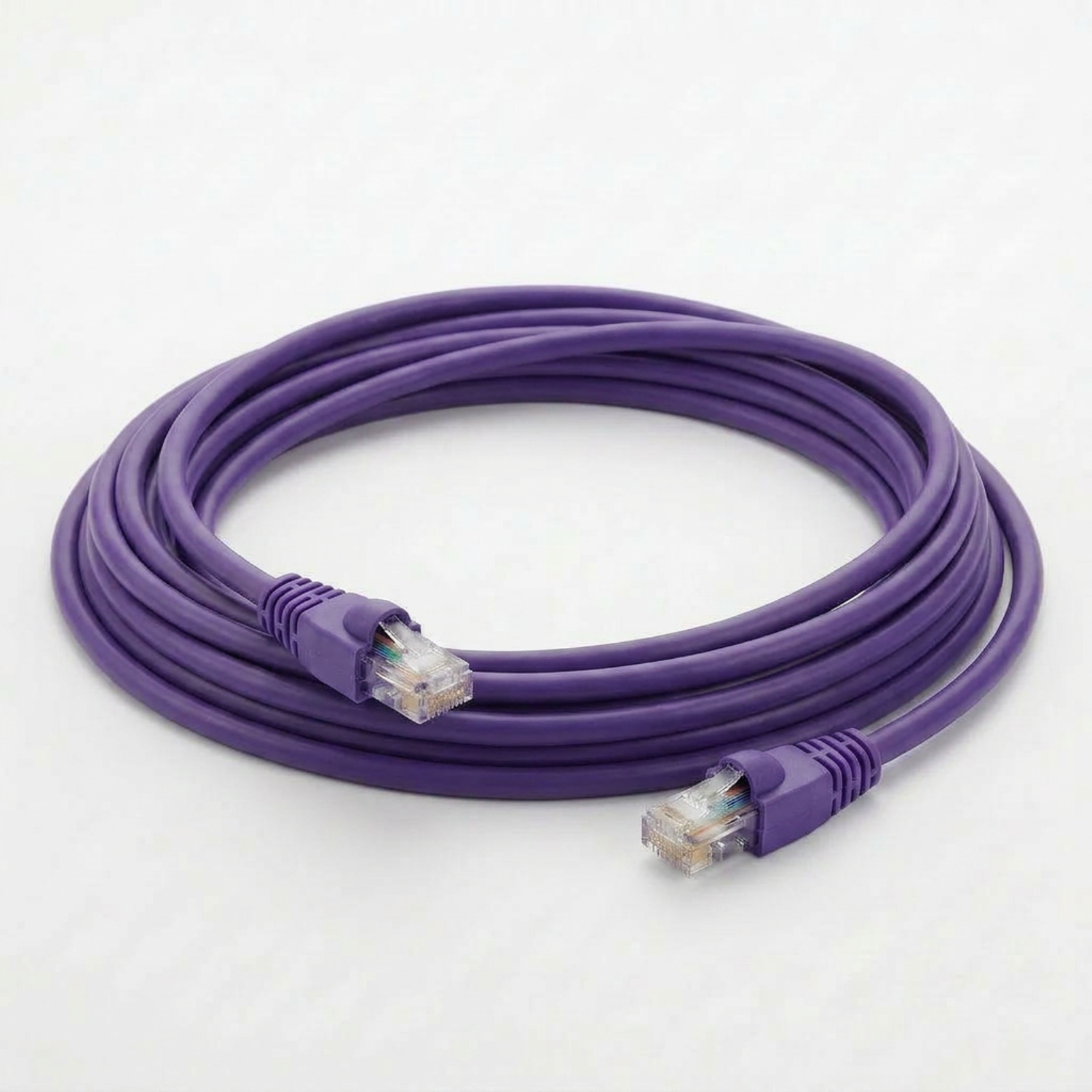

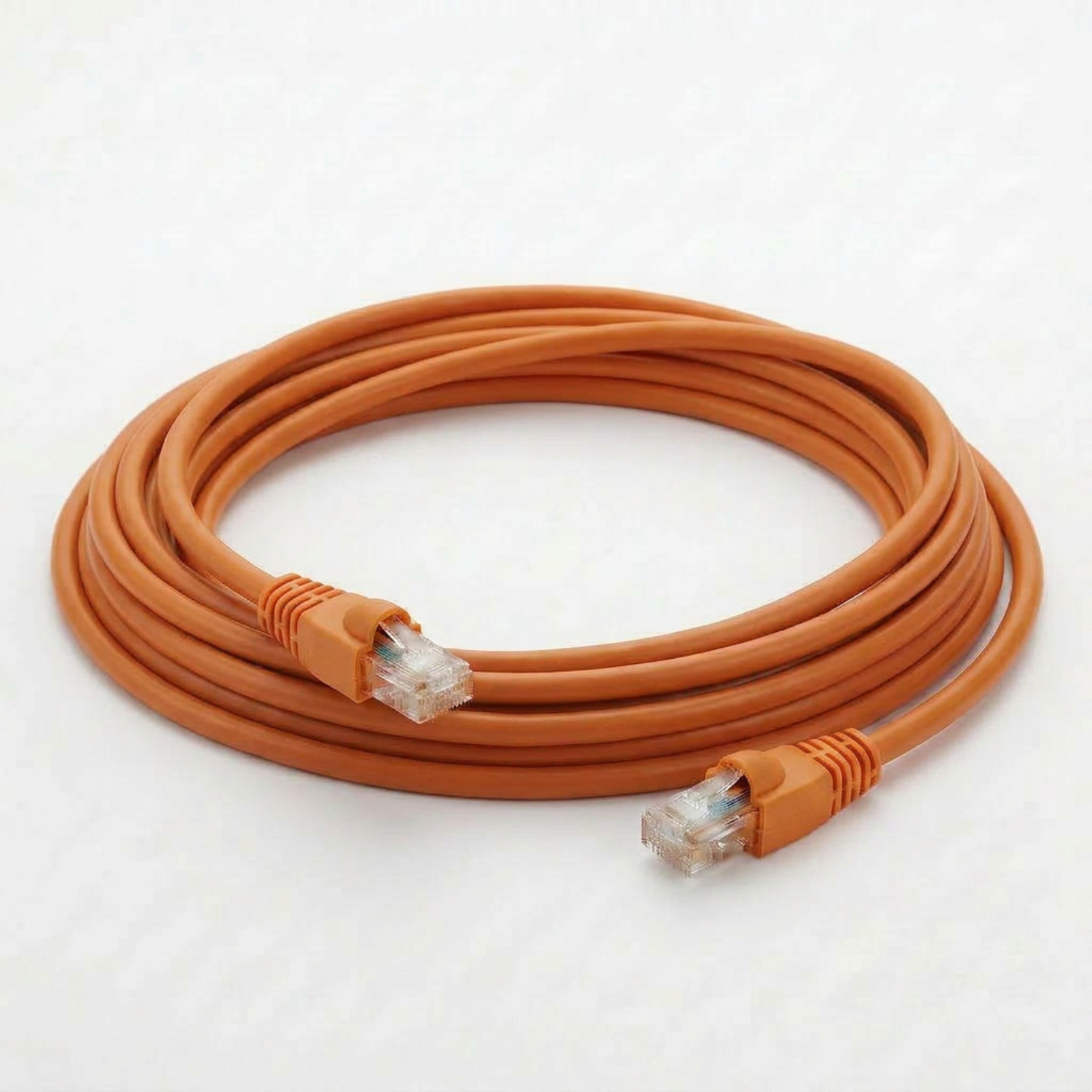

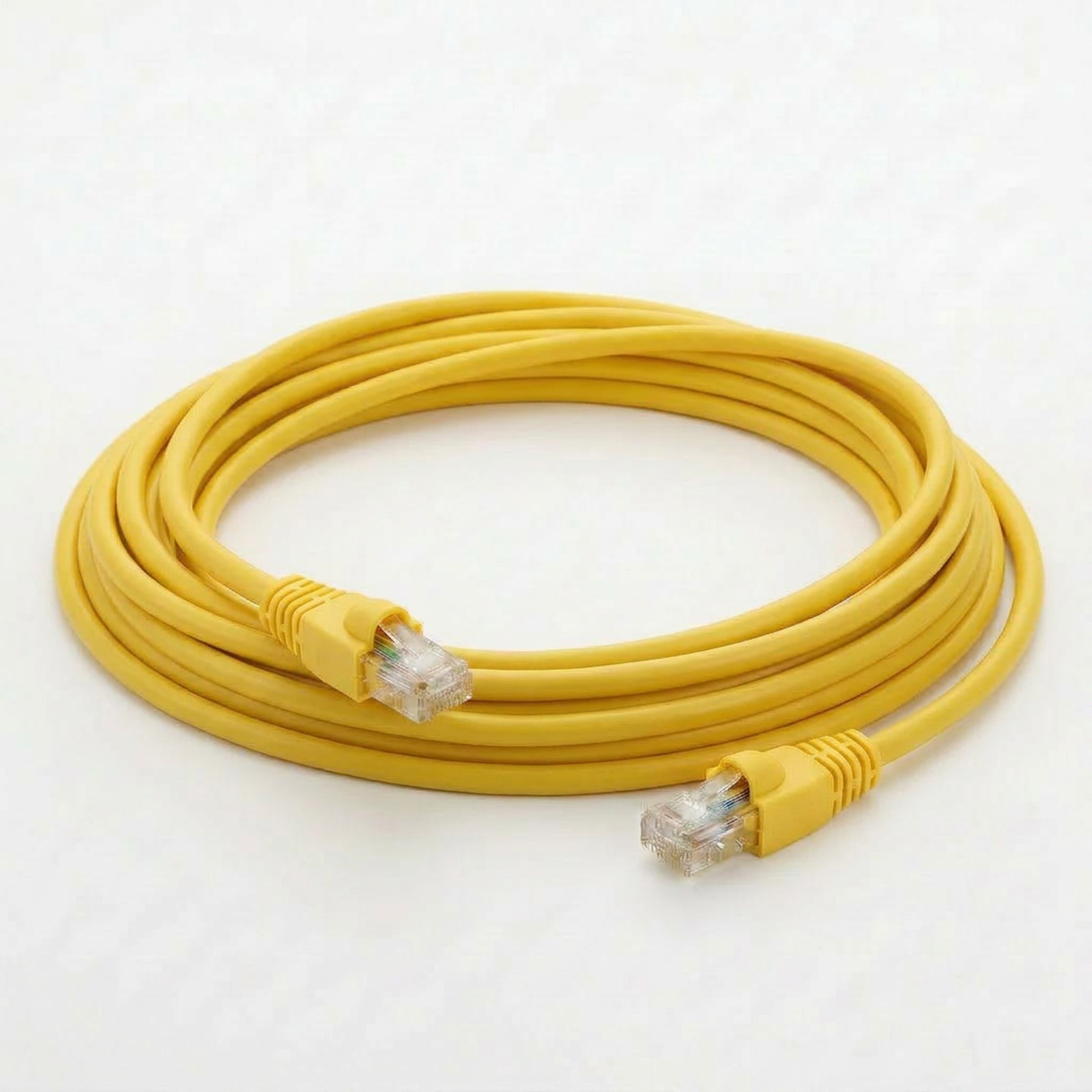

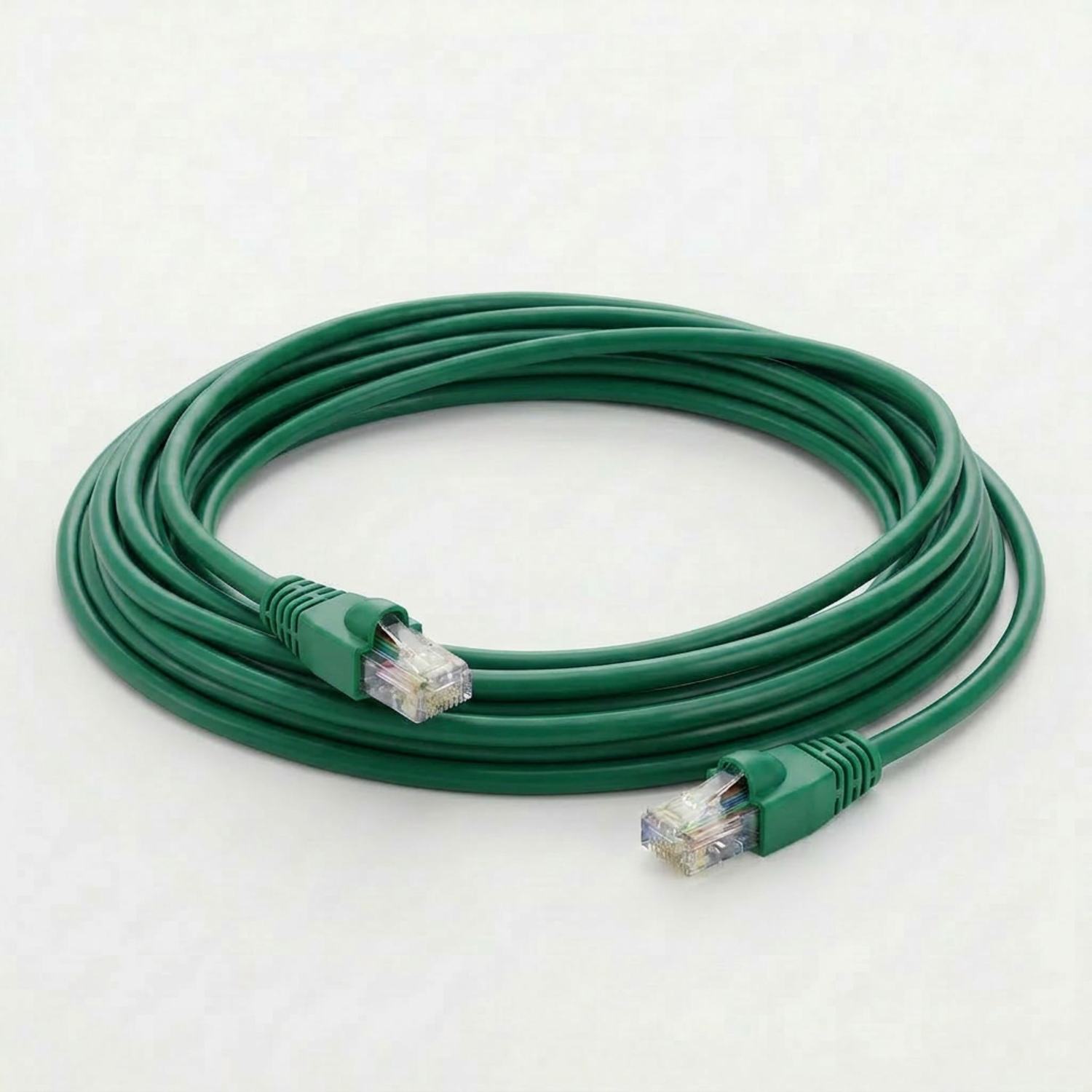

LYNN Choice CAT6A unshielded cables are built with stranded twisted pair cable and are available in a variety of stock colors and lengths.

LYNN specializes in custom copper and fiber optic assembly manufacturing with facilities throughout North America. Most cables are built within 48 hours or faster. Use our custom cable builder to design and submit a custom cable request.

Specifications

Purchase Description

LYNN CHOICE Series Cat 6A, Bare Stranded Copper (26 AWG), Unshielded (UTP), Soft Molded Snagless Boot, Black, 1 ft (0.30 m)
Product Line

Choice Series
Ethernet Category Standard

Cat 6A
Flammability Rating

CM
Shielding Type

Unshielded (UTP)
Jacket Color
- Black
Cable Length

1 ft (0.30 m)
Jacket Material

PVC
Jacket Diameter

7.0 mm
Connector Type
- RJ45 Male, Gold-Plated Conductors
Insulation Material

High Density Polyethylene
Conductor Type

Bare Stranded Copper
Conductor Size

24 AWG
Conductor Count

8
Boot Type

Soft Molded Snagless Boot
Boot Color

Black
PoE Maximum Distance

40 m (131 ft)
PoE Power Rating
- POE++: 1000mA, 96W
- POE+: 600mA, 25.5W
- POE: 350mA, 12.95W
Supported Data Rate

Up to 10 Gbps
Frequency Bandwidth

500 MHz
Operating Temperature Range

0° C to 50° C (32° F to 122° F)
Country of Origin

Vietnam
Compliance
- BABAA
- RoHS
- UL Listed
- Proposed ISO/IEC 11801 2nd edition, Class D & CAT5E
- ISO/IEC 11801
- ANSI/TIA/EIA-568-B-2
- ANSI/TIA/EIA-568-B-1
- ANSI/TIA/EIA-568-A-5
- ANSI/TIA/EIA-568-A-4
- ANSI/TIA/EIA-568-A-3
- ANSI/TIA/EIA-568-A-2
- ANSI/TIA/EIA-568-A-1
- ANSI/TIA/EIA-568-A
- TIA PN-4657
Manufacturing Facility Certifications
- TUV
- ISO-9001
