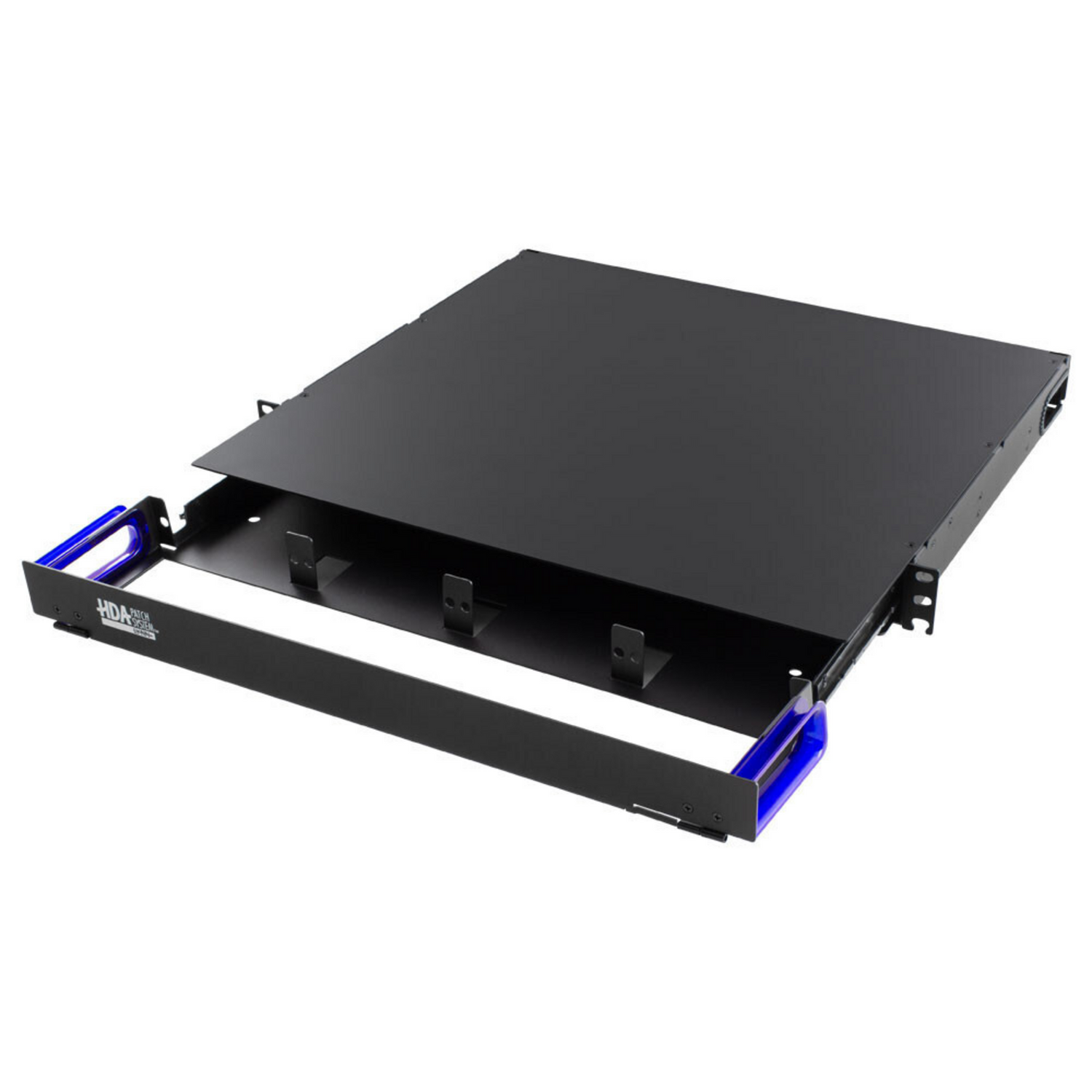

HDA Rack Mount Fiber Patch Panel Enclosure, 1U

Designed for high density, our 1U HDA Rack Mount Fiber Patch Panel Enclosure is constructed from 16 gauge steel for performance and durability.

Holds 4 HDA adapter panels up to 96 fibers using 36-fiber adapter plates (144 LC; 48 SC). Fits standard 19 rack. Compatible with Panduit Opticom panels.

• Extreme density: 33% increase in density compared to standard LGX panel.
• Easy Access: Large opening for easy front cable access to each port.
• Non-captive Mounting Ears: Preinstalled screws in rack. Simply place panels on screws and tighten.
• Magnetic Door: Allows you to quickly open panel doors even in a crowded rack.
• E-Z Glide Tray: Tray glides along rails with mechanism that stops and secures in open position.

Ships in durable cardboard box with anti-static EPE pearl cotton foam packaging. Assembled in the USA.
