Simplex Pigtail, OM1

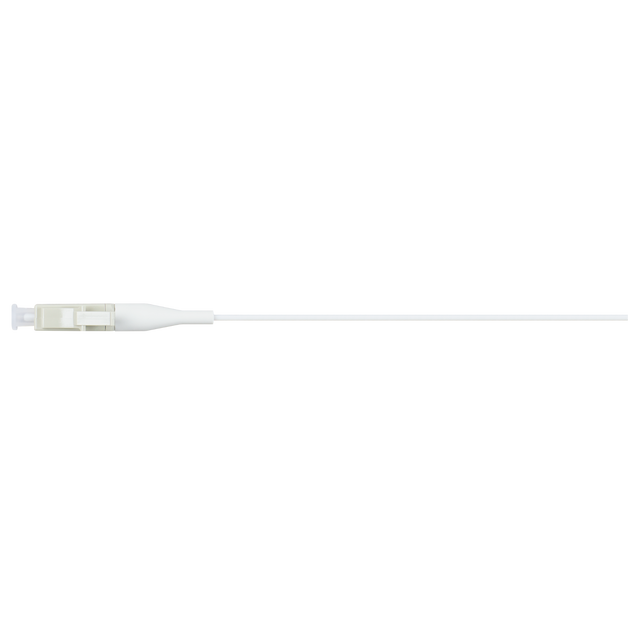

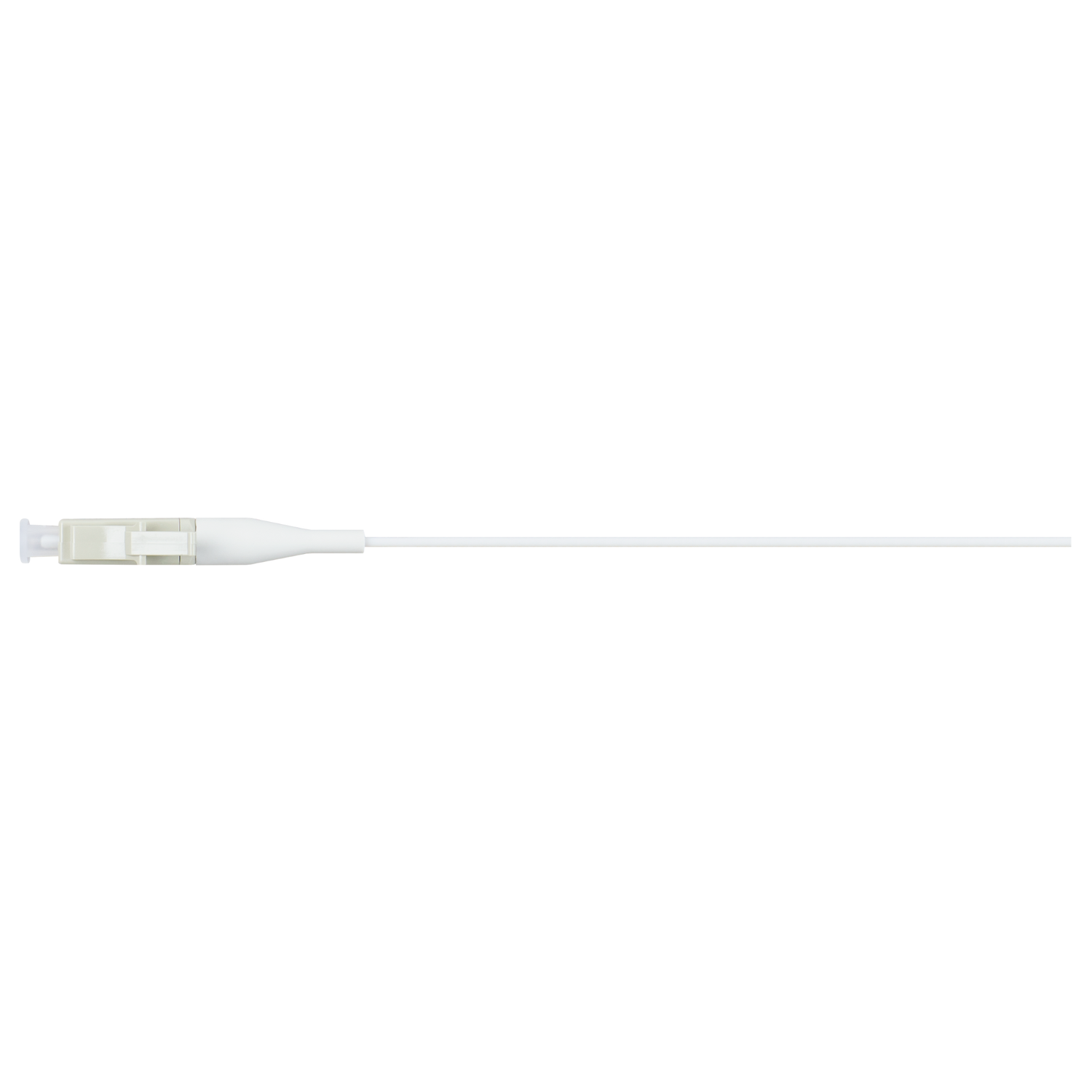

LYNN Simplex OM1 Pigtails are designed for low fiber count splicing applications in CATV, FTTX, telecommunication networks, and premise installations. Each pigtail features OM1 62.5/125µm tight-buffered optical fiber with an LC or SC connector pre-installed on one end and exposed fiber on the opposite end for field termination.

The standard 1-meter length provides a compact, manageable solution for splicing inside fiber enclosures, panels, and premise network installations. The exposed fiber end is ready to be stripped and fusion or mechanically spliced to a single fiber within a multi-fiber trunk, helping support efficient installation and cable management.

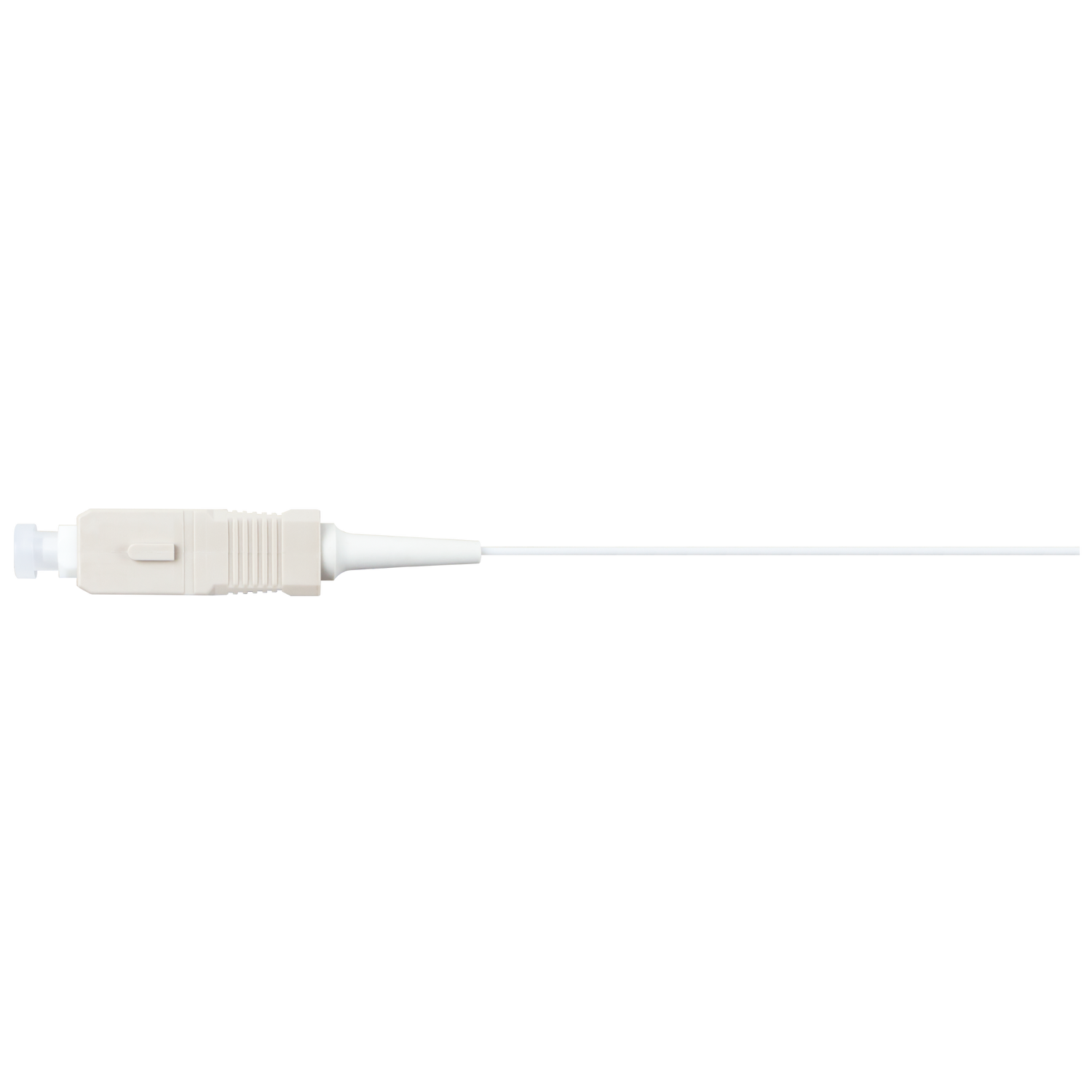

Built with Corning® glass, these OM1 multimode pigtails feature a white OFNR-rated riser jacket and PC polish connector options. LC and SC connector styles are available, with ST connectors available on request.

LYNN Simplex OM1 Pigtails are engineered for dependable optical performance, featuring insertion loss of less than 0.25dB, return loss of ±0.25dB, durability greater than 500 matings, and an operating temperature range of -20°C to 70°C. These pigtails meet Telcordia GR-326-CORE, TIA/EIA-568-C.3, and IEEE 802.3z requirements, are RoHS compliant, and are manufactured in ISO-9001 and TUV certified facilities.

Don’t see what you’re looking for? Use our custom cable builder to design and submit a custom cable request.

Specification Sheet
